Dongfeng Huashen 300 HP Truck with XCMG 12-Ton Crane

Dongfeng Huashen rear-tandem truck powered by a Yuchai 300 HP engine, equipped with an XCMG 300M 12-ton five-section straight-boom crane and a heavy-duty engineering cargo body.

Yuchai 300 HPXCMG 300M · 12 t18.75 m max. radius

Request a quotation

Choose your chassis

Compare 6×4 chassis options

Choose Dongfeng Huashen, SINOTRUK HOWO, SHACMAN Delong or FAW Jiefang for your quotation. Alternative chassis are matched to the crane, cargo body and destination requirements.

6×4 · Current vehicle configuration

Dongfeng Huashen

Yuchai · 300 HP

Current vehicle illustration; details listed below.

Enquire: Dongfeng Huashen 6×4

6×4 · Alternative chassis enquiry

SINOTRUK HOWO

Engine and output to be selected

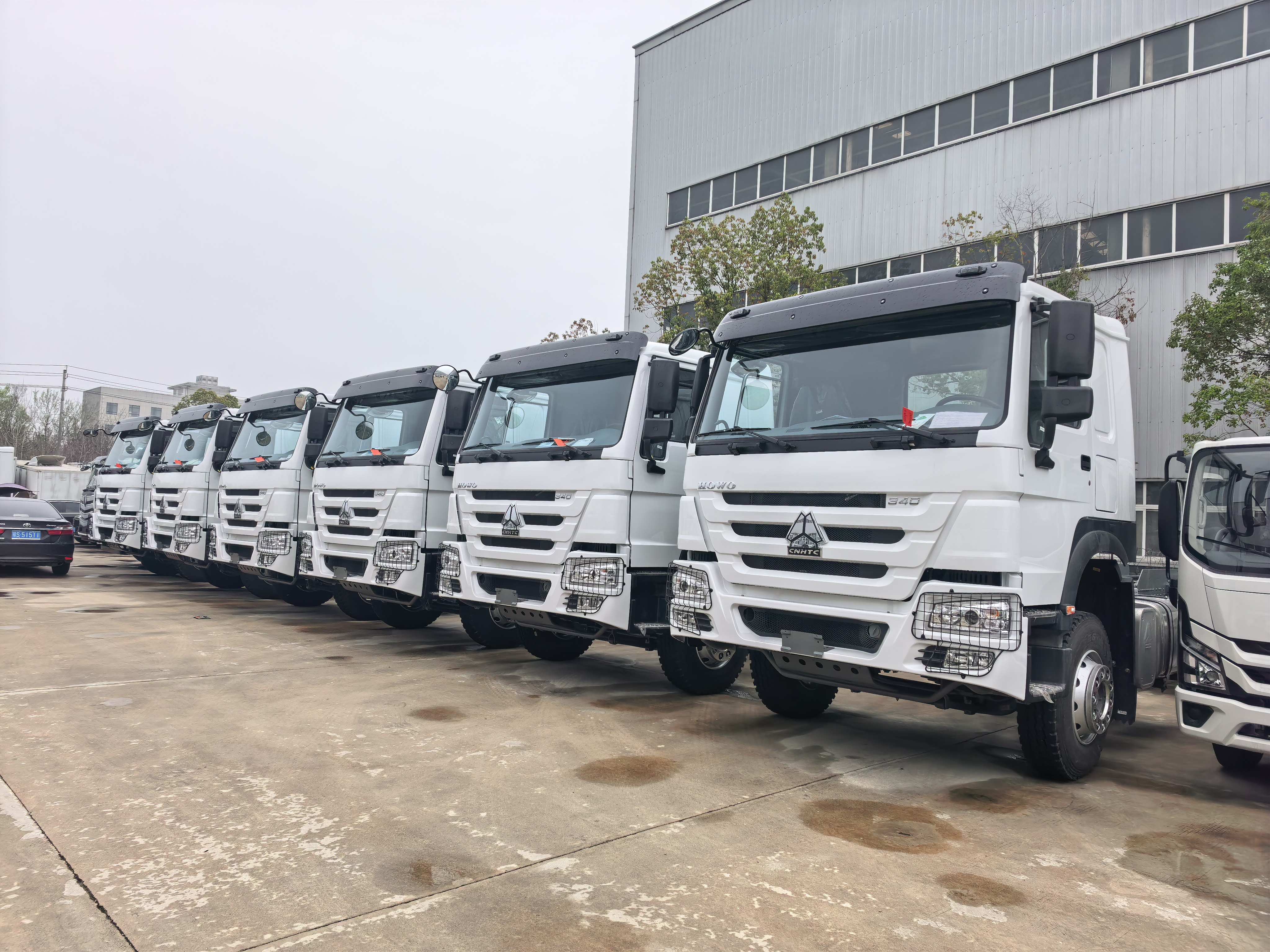

HOWO chassis yard photo; exact 6×4 model to be selected.

Enquire: SINOTRUK HOWO 6×4

6×4 · Alternative chassis enquiry

SHACMAN Delong

Weichai / Cummins options; output to be selected

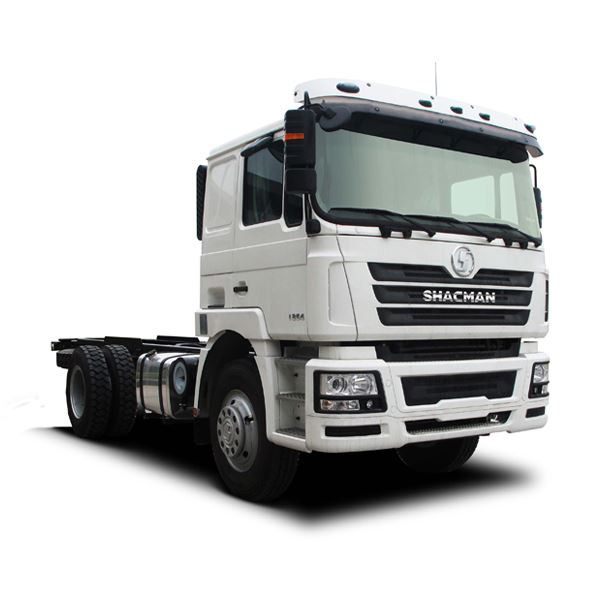

Manufacturer cab reference; crane and cargo body not shown.

Manufacturer reference ↗Enquire: SHACMAN Delong 6×4

6×4 · Alternative chassis enquiry

FAW Jiefang

Engine and output to be selected

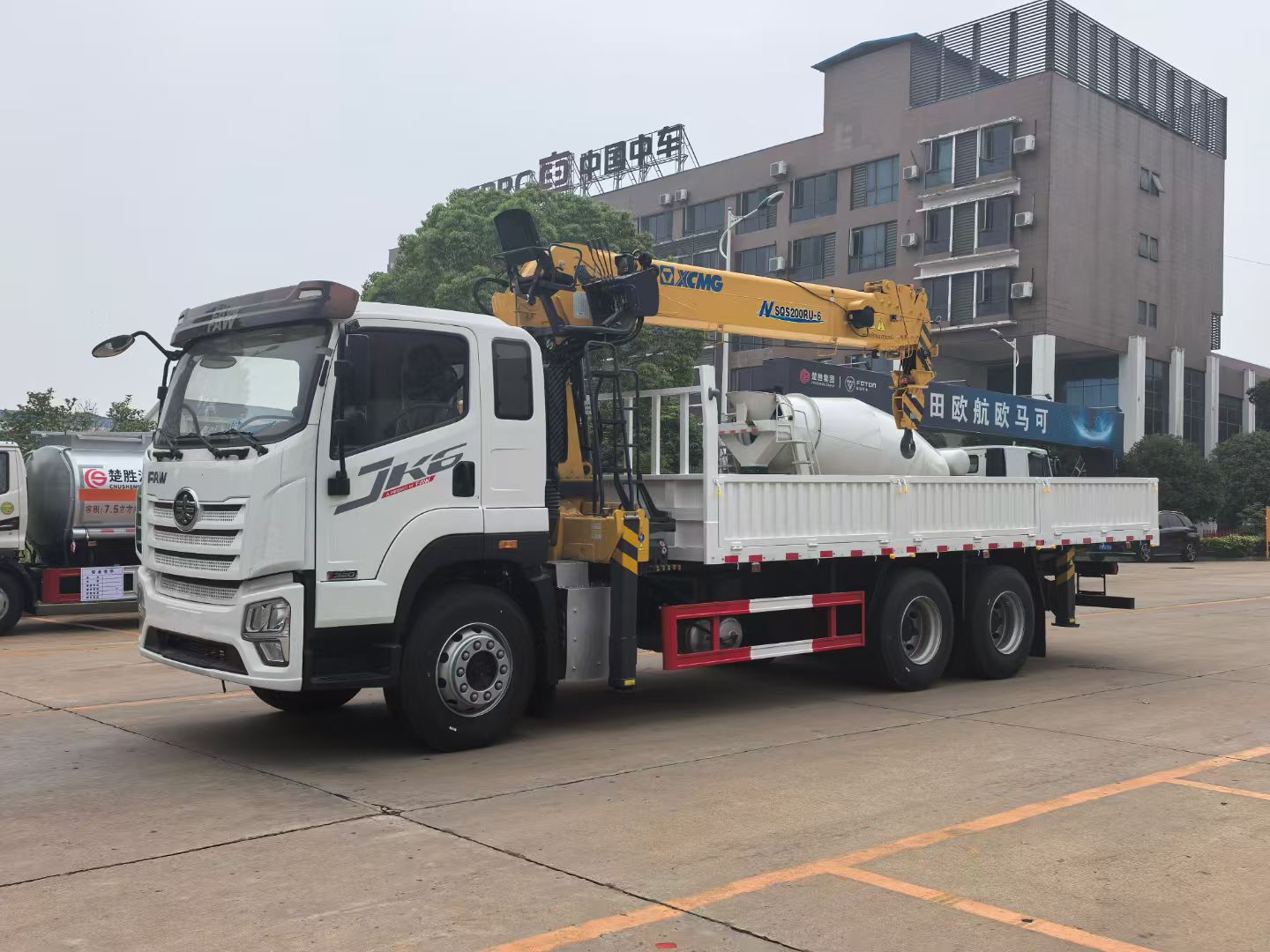

JK6 crane-truck reference; pictured crane differs from the 12-ton specification.

Enquire: FAW Jiefang 6×4

Configuration comparison

Compare	Dongfeng Huashen	SINOTRUK HOWO	SHACMAN Delong	FAW Jiefang
Drive configuration	6×4	6×4 requested	6×4 requested	6×4 requested
Engine	Yuchai 300 HP	Confirm selected engine / output	Weichai / Cummins options¹	Confirm selected engine / output
Crane specification	XCMG 300M · 12 t · 5-section	12-ton crane requested; fitment review	12-ton crane requested; fitment review	12-ton crane requested; fitment review
Cargo body (mm)	8500 × 2450 × 550	Confirm suitable body length	Confirm suitable body length	Confirm suitable body length
Floor / side plates	5 / 3 mm	Confirm with body design	Confirm with body design	Confirm with body design
Wheelbase, frame & axle loads	Confirm chassis model sheet	Match to crane and payload	Match to crane and payload	Match to crane and payload
Emissions, price & lead time	Quotation by destination	Quotation by destination	Quotation by destination	Quotation by destination

Reference images show the corresponding brands, not identical finished configurations. The Dongfeng specifications are for the current vehicle. Other chassis require confirmation of wheelbase, frame reinforcement, axle loads, crane mounting and available body length. ¹ Engine options are from the SHACMAN F3000 manufacturer reference; the quoted model determines the final engine.

Applications

For projects requiring material transport and on-site lifting, such as construction supply, equipment handling and municipal maintenance. Select the crane capacity and working radius to suit the load and site conditions.

Vehicle features

Yuchai 300 HP engine on a Dongfeng Huashen rear-tandem chassis.
XCMG 300M 12-ton crane with a five-section telescopic straight boom and a maximum working radius of 18.75 m.
Two-section main outriggers and XCMG factory-original single-chamber rear outriggers.
XCMG factory-original radiator for the crane system.
Heavy-duty engineering cargo body measuring 8500 × 2450 × 550 mm, with a 5 mm floor and 3 mm side plates.

Vehicle configuration

Item	Configuration
Chassis	Dongfeng Huashen, rear tandem axles (eight rear tyres)
Engine	Yuchai, 300 HP
Crane brand / model	XCMG 300M
Rated maximum lifting capacity	12 tonnes
Boom	Five-section telescopic straight boom
Maximum working radius	18.75 m
Main outriggers	Two-section main outriggers
Rear outriggers	XCMG factory-original single-chamber rear outriggers
Crane radiator	XCMG factory-original radiator
Cargo body	Heavy-duty engineering cargo body
Cargo body dimensions (L × W × H)	8500 × 2450 × 550 mm
Cargo body floor / side plate thickness	5 mm / 3 mm
Fuel / emissions	To be confirmed for the selected chassis

Lifting capacity varies with working radius, boom extension and operating conditions. The 12-ton maximum lifting capacity does not apply at the maximum 18.75 m working radius; refer to the crane load chart for the selected configuration.

Configure your crane truck

Tell us your load weight, required reach, cargo dimensions and destination.
